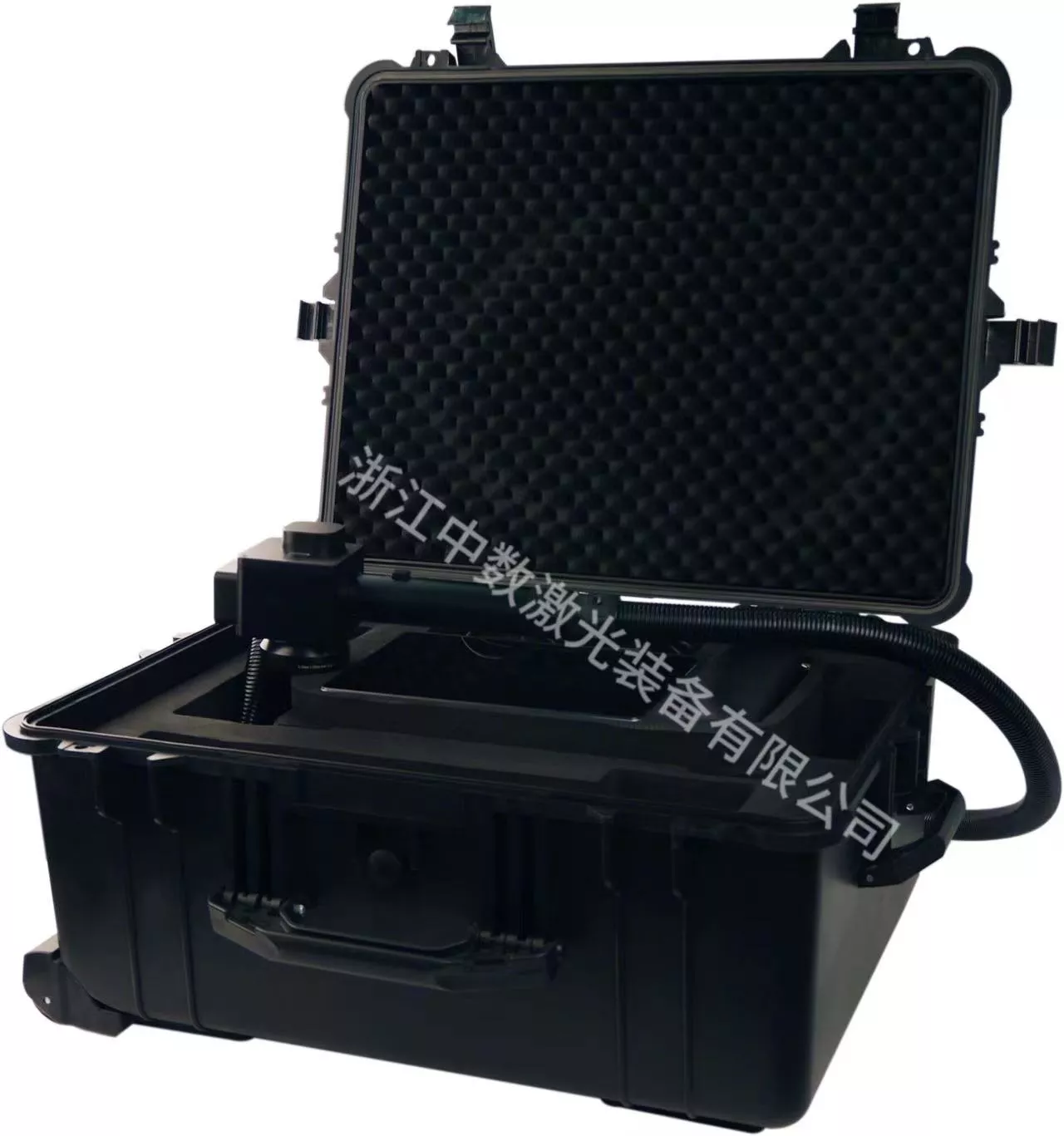

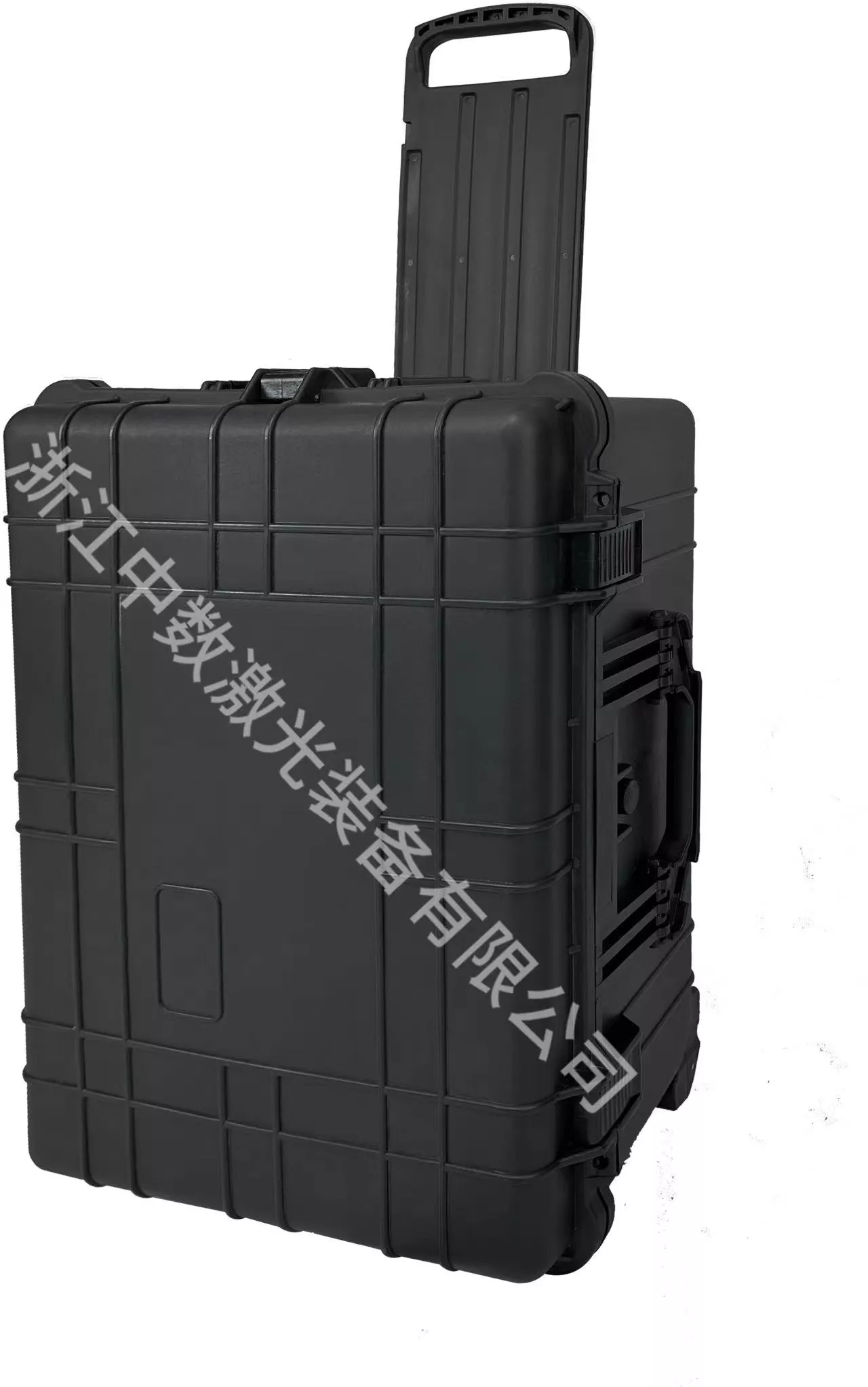

50W/100W portable handheld laser cleaning equipment
The handheld laser cleaning equipment is small in size, easy to carry, and has a good cleaning effect on objects with thin paint and rust layers. The equipment has high flexibility and wide coverage of the working surface, which can cover the operation area that cannot be reached by the fixed equipment, and supplement and remove the residual area after the repainting of the fixed equipment.
Product name: ZSJG-50/100
Working mode: Pulse & Continuous
Center wavelength: 1064±3 / 1064±6nm
Average output power: 51±1/105±5W
Repetition rate: 45~170/20~200KHz
Optical pulse width: 90~110/150~190ns
Maximum pulse energy: 1.1 / 1.6 mJ
Beam quality (M2): <1.6
Output stability: <5 %
Power adjustment range: 10~100 %
Fiber optic cable length: 3m
Operating voltage: AC 220V
Max power consumption: 250/500W
Laser cooling method: air cooling
Storage environment temperature: -10~60°C
Working environment temperature: 10~40°C
Working environment humidity: 10~95%
Host size: 138*364*235 mm
Net weight: 7.5 / 8.8 kg
Cleaning Effect Display
Before cleaning
After cleaning
